说明
额定温度：90ºC
额定电压：450/750V
标准：AS/NZS 5000.2
导体：符合AS/NZS1125标准1类，2类或5类铜丝
绝缘：符合AS/NZS 3808标准
满足AS/NZS 5000.2阻燃要求
环保要求：RoHS & REACH
应用

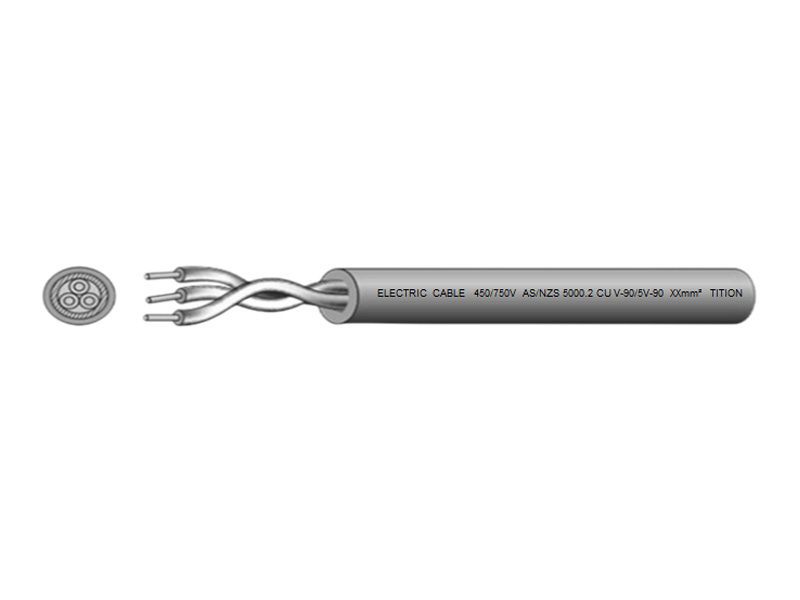

450/750V单芯或多芯聚合物绝缘护套电线电缆
产品参数
| Conductor | Insulation | Maximun Resistance at 20℃ | ||||
| 导体 | 护套 | |||||
| AWG | Core.Number | Nom.Thick. | Average | 20℃最大导体电阻Ω/km | ||
| 线规 | 电缆芯数 | 平均厚度 | 参考外径 | |||
| mm | mm | |||||
| 1.00 | 2× | 1.18 | 7.96 | 19.50 | ||
| 3× | 1.20 | 8.41 | ||||
| 4× | 1.22 | 9.13 | ||||
| 1.50 | 2× | 1.20 | 8.61 | 13.30 | ||
| 3× | 1.22 | 9.10 | ||||
| 4× | 1.25 | 9.91 | ||||
| 2.50 | 2× | 1.25 | 10.10 | 7.98 | ||
| 3× | 1.27 | 10.72 | ||||
| 4× | 1.30 | 11.72 | ||||
| 4.00 | 2× | 1.29 | 11.39 | 4.95 | ||
| 3× | 1.32 | 12.11 | ||||
| 4× | 1.36 | 13.28 | ||||
| 6.00 | 2× | 1.40 | 12.67 | 3.30 | ||
| 3× | 1.36 | 13.49 | ||||
| 4× | 1.41 | 14.83 | ||||
| 10.00 | 2× | 1.41 | 14.81 | 1.91 | ||
| 3× | 1.44 | 15.80 | ||||
| 4× | 1.49 | 17.42 | ||||
| 16.00 | 2× | 1.48 | 16.95 | 1.21 | ||
| 3× | 1.51 | 18.12 | ||||
| 4× | 1.58 | 20.01 | ||||
